2.8L Diesel

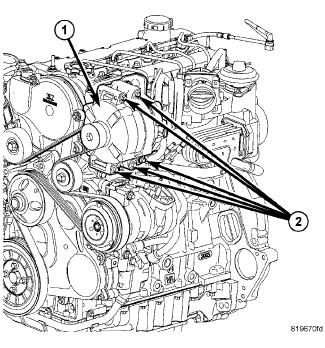

Fig 1: Identifying Generator & Mounting Bolts

Courtesy of CHRYSLER LLC

Position generator (1) to engine and install four mounting bolts (2). Tighten all four bolts to 54 N.m (40 ft. lbs.).
Snap field wire connector into rear of generator.
Install B+ terminal and nut to generator mounting stud. Tighten nut to 13 N.m (115 in. lbs.)
Snap plastic protective cover to B+ terminal.
CAUTION:
Never force a belt over a pulley rim using a screwdriver. The synthetic fiber of the belt can be damaged.

CAUTION:
When installing a serpentine accessory drive belt, the belt MUST be routed correctly. The water pump will be rotating in the wrong direction if the belt is installed incorrectly, causing the engine to overheat. Refer to belt routing label in engine compartment, or refer to BELT, SERPENTINE .
Install drive belt. Refer to BELT, SERPENTINE for belt routing, belt adjustment and bolt tightening procedures.
Install negative battery cable to battery.
