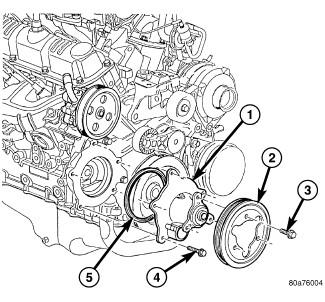

3.8L Engine
Courtesy of CHRYSLER GROUP, LLC
| 1 - WATER PUMP |
| 2 - PULLEY - WATER PUMP |
| 3 - BOLT - PULLEY |
| 4 - BOLT - WATER PUMP |
| 5 - SEAL - WATER PUMP |
The water pump has a die-cast aluminum body and a plastic impeller. It bolts directly to the timing chain case cover, using a rubber seal for sealing. It is driven by the accessory drive belt.
