Left Hand Drive

WARNING: This page is about a different car, the 2011 Dodge Nitro. However, it is still accessible from the selected car via links, so may be relevant.

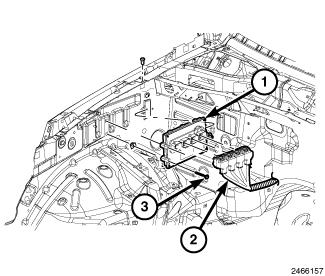

Fig 1: PCM, Screws & Electrical Connectors
GC0138954Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the negative battery cable.
  2. Disconnect the PCM electrical connectors (2).
  3. Remove the PCM mounting screws (3).
  4. Remove the PCM (1) from vehicle.
