Module, Hands Free: Removal: Removal

WARNING: This page is about a different car, the 2011 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The HFM is mounted to the top of the steering column support bracket.

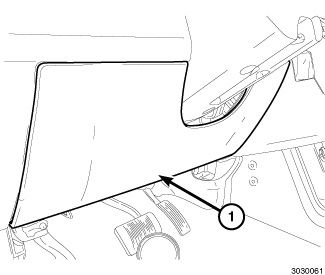

Fig 1: Steering Column Opening Trim Panel

Courtesy of CHRYSLER LLC

Disconnect and isolate the battery negative cable.
Remove the knee bolster. Refer to KNEEBLOCKER, REMOVAL .

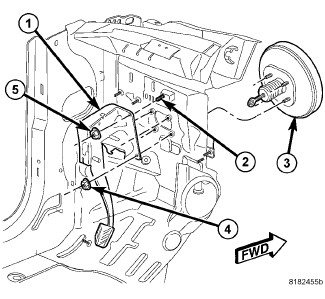

Fig 2: Pedal And Booster Mounting - LHD
Courtesy of CHRYSLER LLC
Remove the brake pedal assembly (1). Refer to PEDAL(S), BRAKE AND/OR ACCELERATOR, REMOVAL .
Remove the hands free module mounting fasteners.
Disconnect the electrical connectors and remove the module.
