Engine Block Heater - Installation






INSTALLATION

1. Thoroughly clean bore hole.
2. Insert block heater assembly into bore.
3. Install retaining clip.
4. Connect power cord to block heater.

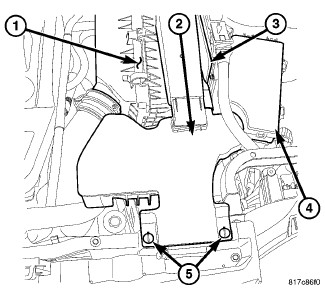

5. Install air intake inlet.
6. Install engine cover.
