Lock Cylinder - Installation

INSTALLATION






NOTE: Compass shown, Patriot similar.

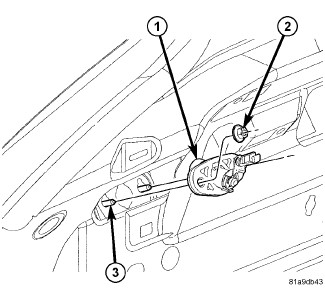

1. Install the lock cylinder (1) and install the two nuts (2).
2. Tighten the nuts (2) to 8.5 Nm (75 in. lbs.)

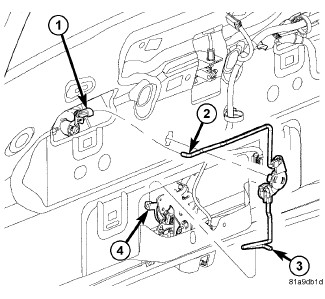

3. Connect the lock cylinder rod (2) and secure the clip (1).






NOTE: Compass shown, Patriot similar.

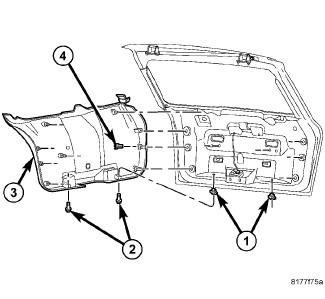

4. Install the lower liftgate trim (3), Liftgate Trim Panel - Installation.
