Procedures

STANDARD PROCEDURE - INJECTOR CONNECTOR





1. Disconnect electrical connectors at the fuel injectors.

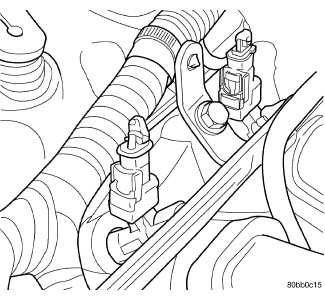

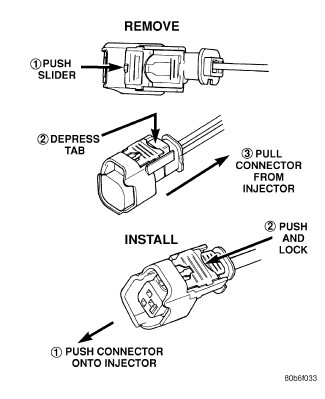

2. To remove connector pull the red colored slider away from injector (1). While pulling the slider, depress tab (2) and remove connector (3) from injector. The factory fuel injection wiring harness is numerically tagged (INJ 1, INJ 2, etc.) for injector position identification. If harness is not tagged, make note of wiring location before removal.
