Gearshift Control Cable - Installation

INSTALLATION






CAUTION: Gearshift cable bushings must not be lubricated or the bushings will swell and split.

1. Install cable assembly through floor pan opening and secure to floor pan with grommet plate.
2. Route transaxle end of cable assembly into engine compartment and over transaxle assembly.

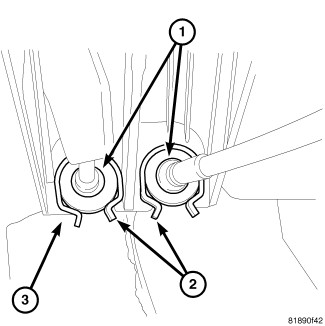

3. Connect cables (1) to the shift levers (3) at the transaxle.

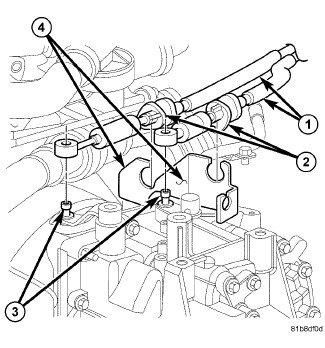

4. Install cables (1) to bracket (4).





5. Install gearshift cables (1).
6. Install ORC Occupant Restraint Controller - Installation.
7. Install shifter Gearshift Mechanism - Installation.
8. Install battery tray.
9. Install battery and hold-down clamp.
10. Install the air cleaner assembly.
11. Connect battery cables.
