Module, Transmission Control: Removal: Removal

NOTE:

LHD model shown in illustrations. RHD model TCM located in similar area on Left side of interior.

Fig 1: Air Bag Removal/Installation

Courtesy of CHRYSLER GROUP, LLC

Remove the steering column opening cover (5), refer to COVER, STEERING COLUMN OPENING, REMOVAL .

Fig 2: Transmission Control Module (TCM)
Courtesy of CHRYSLER GROUP, LLC
The TCM (3) is located to the right of the left kick panel (1).

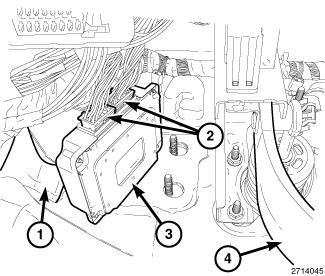

Fig 3: TCM Unplugged
Courtesy of CHRYSLER GROUP, LLC
Unplug the two electrical connectors (2) at the TCM (3).

Fig 4: TCM Mounting Nuts
Courtesy of CHRYSLER GROUP, LLC
Using a ratchet (2) and a long extension (1) remove the two nuts that hold the TCM to the bulkhead.

Fig 5: TCM Out
Courtesy of CHRYSLER GROUP, LLC
Slide the TCM off the mounting studs (1) and remove from the vehicle.
