Relay-Radiator Fan-Low/High (D813A)

Harness-Family: Virtual_Fuse_Block

Color: NA

Gender: MALE

Part Number: G8HE-1C77-R1-DC12

Part Description: Not Available

Connector No: D813A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Relay-Radiator Fan-Low/High Connector End View

Courtesy of CHRYSLER

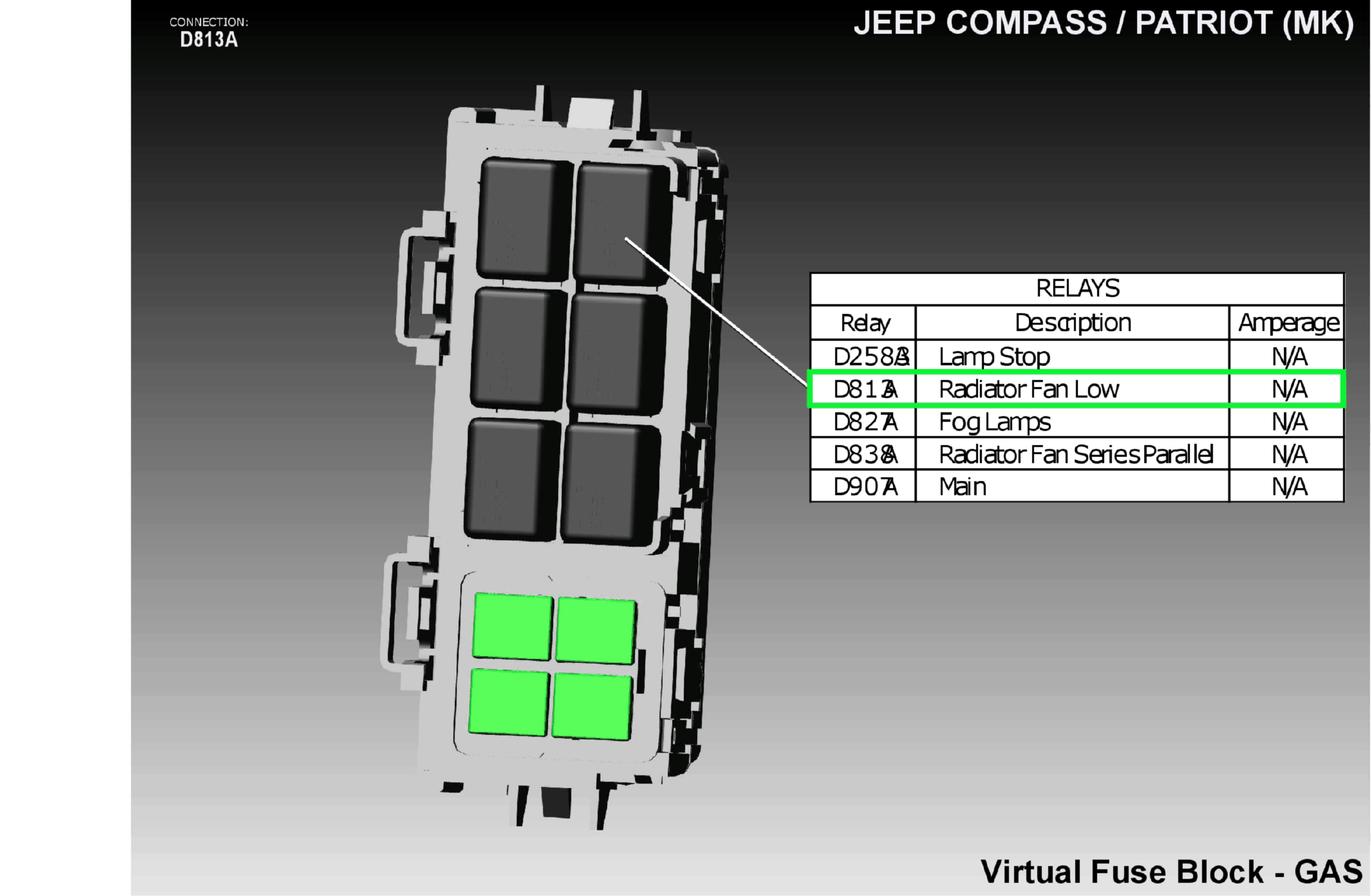

Fig 2: Relay-Radiator Fan-Low/High Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A16

RD/BR

FUSED B(+)

N/A

A935

FUSED B(+)

N/A

N201

DB/LG

LOW SPEED RAD FAN CONTROL

N/A

N23

DB/DG

LOW SPEED RAD FAN CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
