DUCT, Defroster: Installation: Installation
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

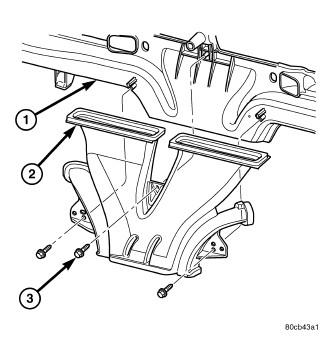

- Position the defroster duct (2) into the instrument panel (1).
- Install the three screws (3) that secure the defroster duct to the instrument panel. Tighten the screws to 1.2 N.m (10 in. lbs.).
- Install the instrument panel. Refer to Body/Instrument Panel/PANEL, Instrument - Installation .
