Module, Radio Antenna: Installation: Module
WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

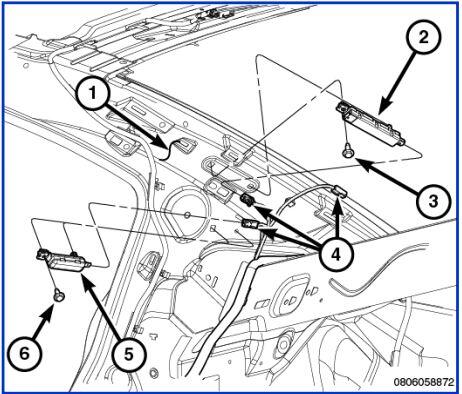

- Engage the mounting tab of the antenna module (2) into the slotted hole in the upper right C-pillar (1).
- Install and tighten the screw (3) that secures the antenna module to the C-pillar. Tighten the screw securely.
- Reconnect the body wire harness connector (4) to the antenna module.
- Reinstall the trim onto the upper right C-pillar. Refer to PANEL, C-PILLAR TRIM, INSTALLATION .
- Reconnect the negative cable to the battery. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
