Sensor, Ambient Temperature: Installation: Installation

WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

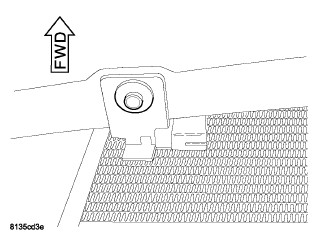

Fig 1: Ambient Temperature Sensor Fastener
GC0080153Courtesy of CHRYSLER GROUP, LLC
  1. Position the ambient temperature sensor in the vehicle.
  2. Install the fastener that secures the ambient temperature sensor to the front bumper beam.
    Fig 2: Ambient Temperature Sensor Connector
    GC0080152Courtesy of CHRYSLER GROUP, LLC
  3. Connect the wire harness connector (1) to the ambient temperature sensor (2).
  4. Install the belly pan. Refer to BELLY PAN, INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
