Sensor, Ambient Temperature: Installation
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Position the ambient temperature sensor in the vehicle.

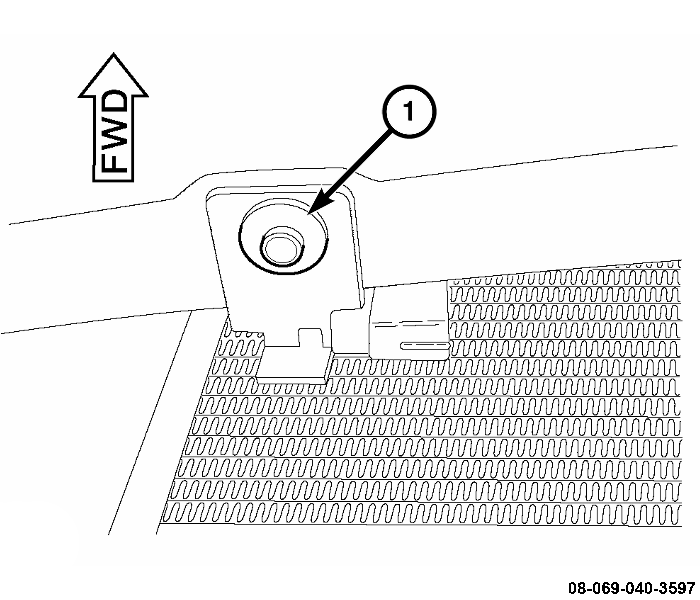

- Install the fastener (1) that secures the ambient temperature sensor to the front bumper beam.

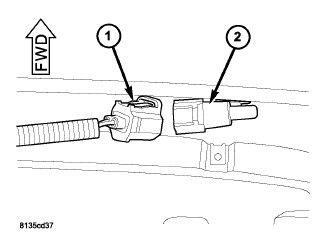

- Connect the wire harness connector (1) to the ambient temperature sensor (2).
- Install the belly pan. Refer to BELLY PAN, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
