Switch, EVIC Control: Installation
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

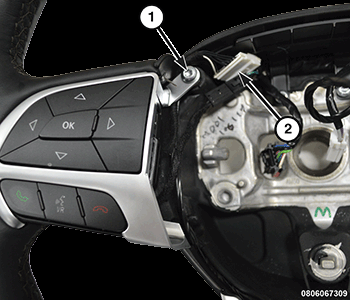

- Connect the EVIC wire harness to the steering wheel wire harness connector (2).
- Position the Electronic Vehicle Information Center (EVIC) switch and wire harnesses to the front of the steering wheel.
- Install and securely tighten the fastener (1) that secures the switch to the steering wheel.

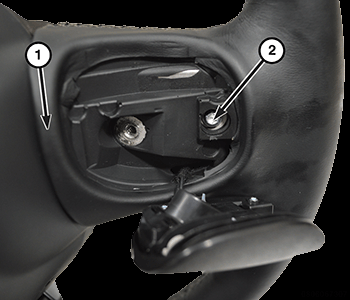

- From the back of the steering wheel (1), install and securely tighten the fastener (2) for the EVIC switch.
- Install the remote radio switch. Refer to SWITCH, REMOTE RADIO, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
