Section 76 (Propeller Shaft): Removal: Rear: Notes

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Propeller shaft removal is a two-man operation. Never allow propeller shaft to hang from the center bearing, or while only connected to the transmission or rear axle flanges. A helper is required. If a propeller shaft section is hung unsupported, damage may occur to the shaft, coupler, and/or center bearing from over-angulation. This may result in driveline vibrations and/or component failure.

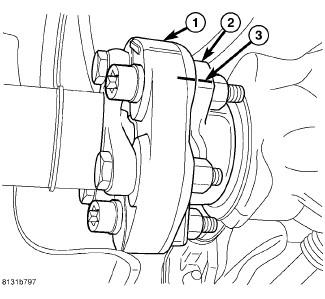

Fig 1: Alignment Marks AT Shaft And Flange

Courtesy of CHRYSLER GROUP, LLC

With vehicle in neutral, position on hoist.
Apply alignment index marks (3) on the transmission and axle flanges (2) and rubber couplers (1).

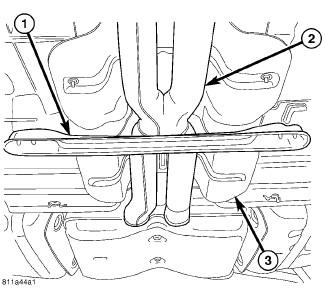

Fig 2: Crossmember
Courtesy of CHRYSLER GROUP, LLC
Remove crossmember (1).

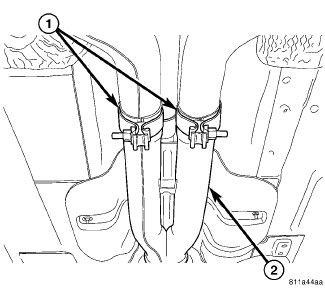

Fig 3: Identifying Clamps & Rear Exhaust System
Courtesy of CHRYSLER GROUP, LLC
Remove rear exhaust system (2).

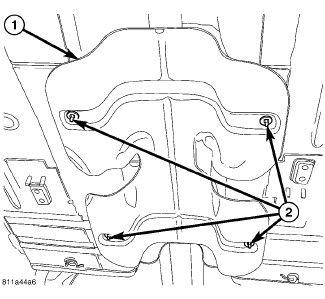

Fig 4: Heat Shield
Courtesy of CHRYSLER GROUP, LLC
Remove heat shield (1).

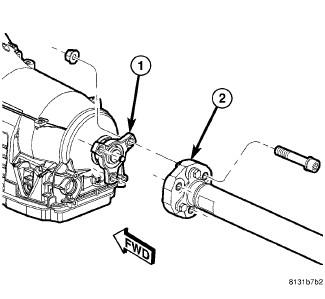

Fig 5: Propeller Shaft AT Transmission
Courtesy of CHRYSLER GROUP, LLC

1 - TRANSMISSION REAR FLANGE

2 - FRONT COUPLER
Remove propeller shaft front coupler-to-flange bolts.

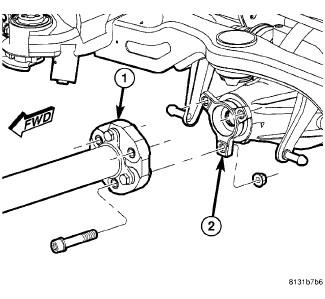

Fig 6: Propeller Shaft AT Rear Axle Flange
Courtesy of CHRYSLER GROUP, LLC

Remove propeller shaft rear coupler-to-flange bolts.

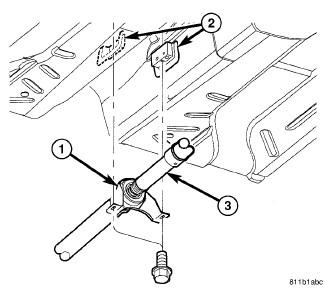

Fig 7: Center Bearing-To-Body

Courtesy of CHRYSLER GROUP, LLC

1 - CENTER BEARING

2 - CENTER BEARING MOUNT

3 - PROPELLER SHAFT

Remove center bearing (1) mounting bolts.
With the aid of a helper, remove propeller shaft assembly.
