Front Axle Disconnect

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

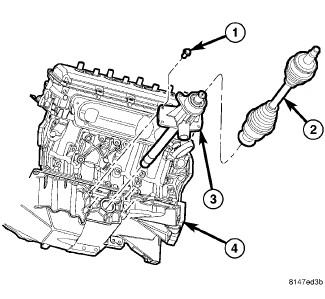

Fig 1: Left Drive Axle & Intermediate Shaft

Courtesy of CHRYSLER GROUP, LLC

Install the front axle disconnect (3).
Install and torque the four front axle disconnect-to-oil pan bolts (1) to 25 N.m (18 ft. lbs.).

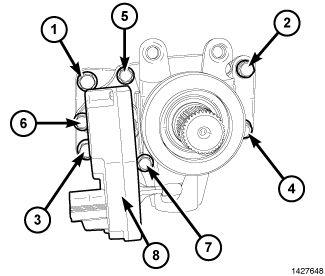

Fig 2: Bolts From Front Axle Disconnect Solenoid
Courtesy of CHRYSLER GROUP, LLC
Install the front axle disconnect solenoid (8), and the 3 bolts (5), (6) and (7).

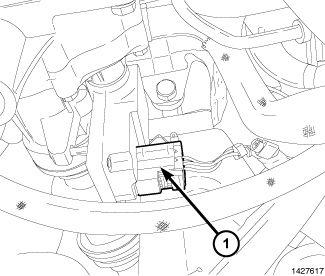

Fig 3: Front Axle Disconnect Solenoid Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Connect the front axle disconnect solenoid harness connector (1).

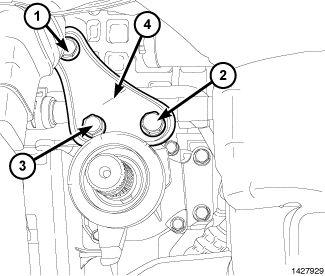

Fig 4: Bolts From Front Axle Disconnect Bracket
Courtesy of CHRYSLER GROUP, LLC
Install the front axle disconnect solenoid bracket (4), and the 3 bolts (1), (2), and (3).
