Frame, Ladder: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

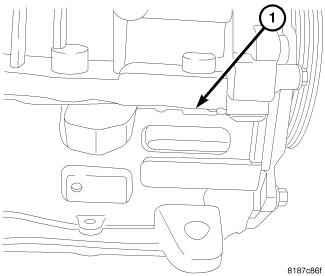

Fig 1: Pry Point 1

Courtesy of CHRYSLER GROUP, LLC

Remove oil pan. Refer to PAN, OIL, REMOVAL .
Remove balance shaft assembly. Refer to PUMP, ENGINE OIL, REMOVAL .
Remove ladder frame retaining bolts.
Remove ladder frame using pry point cast in the rear of the block (1).

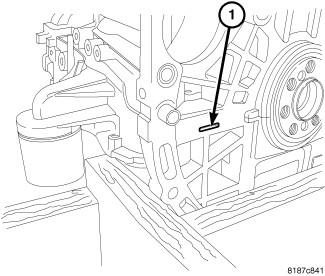

Fig 2: Pry Point 2
Courtesy of CHRYSLER GROUP, LLC
To assist in removing the ladder frame another (1) pry point cast in the right side of the block.
