Mechanism, Gearshift: Installation: Installation

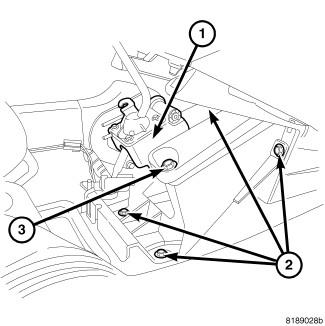

Fig 1: Shifter Bolts

Courtesy of CHRYSLER GROUP, LLC

1. Install shifter assembly. (1) to riser. Install and tighten bolts (3) to 7 N.m (61 in. lbs.).

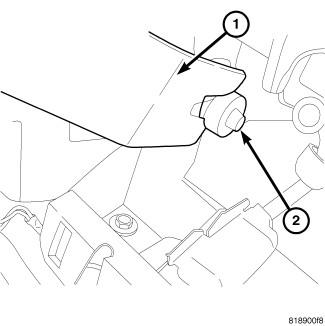

   Fig 2: Selector Cable AT Shifter

   Courtesy of CHRYSLER GROUP, LLC
2. Install shift cable (2) to shifter lever (1) and secure cable to shifter bracket with clip (3).

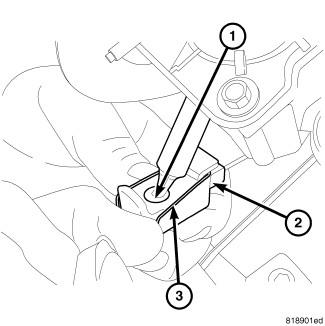

   Fig 3: Crossover Cable AT Shifter

   Courtesy of CHRYSLER GROUP, LLC
3. Install select cable to shifter lever and secure cable to shifter bracket.
4. Install center console assembly. Install rear power window switch (if equipped) and fasten harness to console (see CONSOLE, FLOOR ).
5. Install gearshift boot.
6. Verify that shift pattern is aligned properly.
