Section 758 (Front Axle): Installation
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

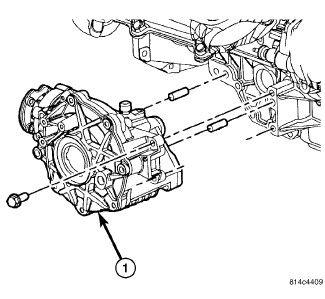

- Install front axle assembly (1) into position. Install and tighten axle housing-to-engine bolts to 65 N.m (48 ft. lbs.).

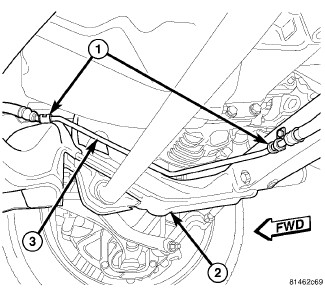

- Install power steering return line to cradle by fastening clips (1).

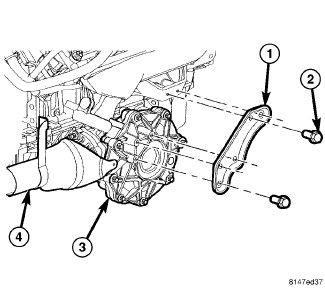

- Install axle assembly support bracket (1) and bolts and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
- Install the front axle disconnect. Refer to DISCONNECT, FRONT AXLE, INSTALLATION .
- Install RH catalytic converter/exhaust pipe assembly. Refer to CONVERTER, CATALYTIC, INSTALLATION .
- Install front propeller shaft. Refer to INSTALLATION .
- Install both front halfshafts. Refer to INSTALLATION
.

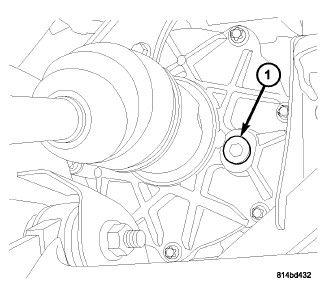

- Fill axle with 600ml (0.64 qts.) of Mopar® 75W-90 Synthetic Gear Lubricant. Fluid level should be at or near bottom of fill hole. Torque fill plug (1) to 30 N.m (22 ft. lbs.).
- Lower vehicle.
