Module, Radio Receiver: Installation: Installation

WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Radio Receiver Module Connectors

Courtesy of CHRYSLER GROUP, LLC

Position the Radio (also known as the Radio Module) near the radio mounting location of the instrument panel.
Reconnect the antenna connectors (3) and the instrument panel wire harness connector (2) to the back of the radio.
If equipped, reconnect the Universal Serial Bus (USB) connector (1) to the back of the radio.

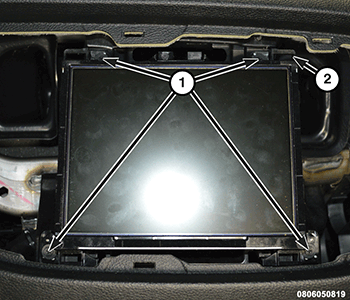

Fig 2: Instrument Panel Support Structure & Screws
Courtesy of CHRYSLER GROUP, LLC
Position the radio into the mounting location of the instrument panel support structure (2).
Install and tighten the four screws (1) that secure the radio to the instrument panel support structure. Tighten the screws securely.
Reinstall the instrument cluster bezel onto the instrument panel. Refer to BEZEL, INSTRUMENT CLUSTER, INSTALLATION .
Reconnect the negative cable to the battery. If equipped with an Intelligent Battery Sensor (IBS), reconnect the IBS connector.

NOTE:

RA3 and RA4 Radio Uconnect Access Applications and WiFi hotspot will be automatically updated in the replacement radio through the embedded cellular phone of the radio based upon the current subscription status of the customer. This update process may take up to an hour, depending upon the number of apps and available cellular services access. The dealer is not expected to perform this process or to oversee it, but may need to explain to the vehicle owner or operator that some features and applications may not be fully restored and overall system response may be slowed until the process has completed.

NOTE:

For RA3 radio only: If the radio has had the GPS navigation feature activated, any factory replacement radio for the same vehicle will be provided with the GPS navigation system already activated. Refer to DESCRIPTION .
