Module, Active Damping Control: Installation: Installation
WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

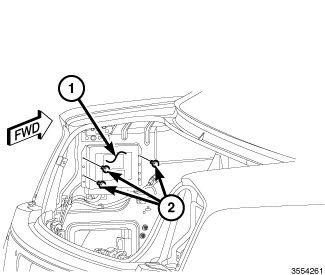

- Slide the Active Damping Control Module (ADCM) (1) into position making sure the latches secure the ADCM.
- Install the retaining screws (2) and tighten to 9 N.m (80 in. lbs.).
- Connect the wire harness connectors to the ADCM (1).
- Position the carpet back in the original location and install the fasteners.
- Connect the negative battery cable. Refer to CABLES, BATTERY, INSTALLATION .
- Perform the ADCM Verification Test.
