Lever, Shift: Installation: Installation

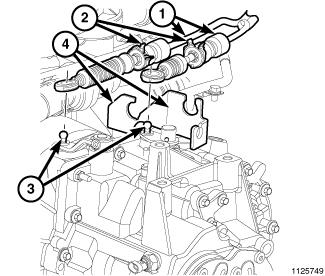

Fig 1: Removing/Installing Gearshift Control Cable
GC0099029Courtesy of CHRYSLER GROUP, LLC
  1. Install select lever to shaft and fasten with NEW roll pin.
  2. Install select cable to bracket. Fasten with clip.
  3. Install select cables (2) to select lever (3).
