P0930-BTSI Control Circuit Low: Notes

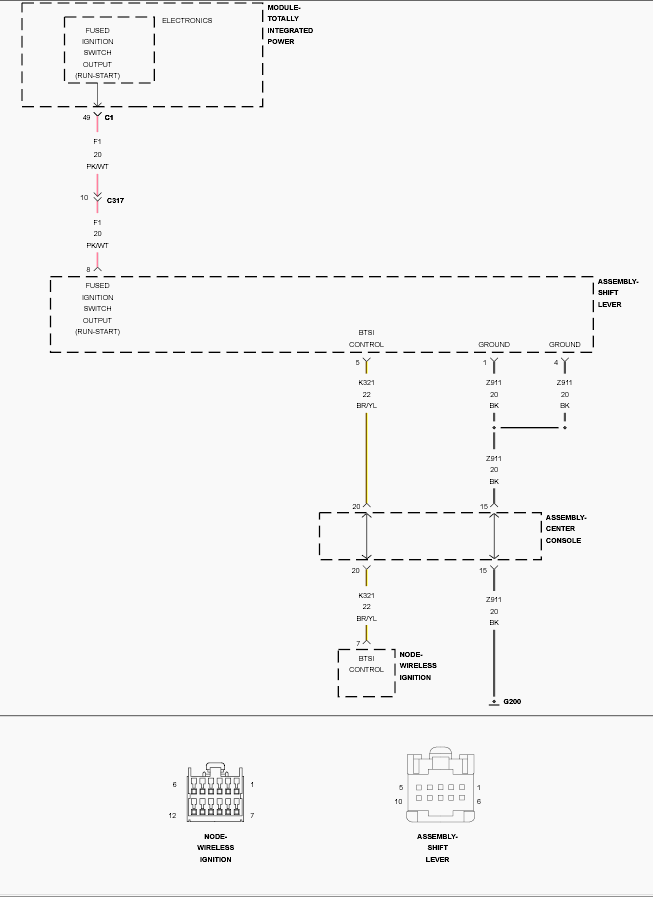

Fig 1: Brake Transmission Shift Interlock Control Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
