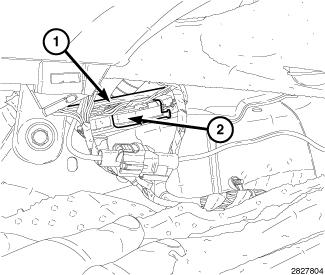

Fig 1: TCM & Wiring Harness Connectors

Courtesy of CHRYSLER LLC

1 - TRANSMISSION CONTROL MODULE

2 - WIRING CONNECTORS

Connect the wiring connectors (2) to the transmission control module (1).
Slide the TCM (1) into the mounting bracket.

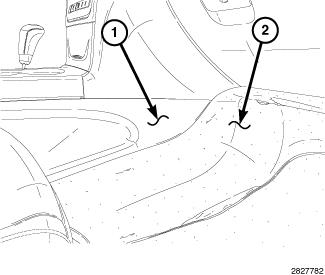

Fig 2: Lower Center Console Trim Panel & Right Side Floor Carpet
Courtesy of CHRYSLER LLC

1 - CENTER CONSOLE LOWER TRIM PANEL

2 - FLOOR CARPET
Fold the right side floor carpet (2) back under the center dash area.
Install the right side lower center console trim panel (1).
