Nag1 Automatic Transmission (Service Information): Installation: Installation

Fig 1: Measuring Torque Converter Installation Depth
GC0081198Courtesy of CHRYSLER GROUP, LLC
  1. Check torque converter hub and hub drive flats for sharp edges burrs, scratches, or nicks. Polish the hub and flats with 320/400 grit paper and crocus cloth if necessary. The hub must be smooth to avoid damaging pump seal at installation.
  2. If a replacement transmission is being installed, transfer any components necessary, such as the manual shift lever and shift cable bracket, from the original transmission onto the replacement transmission.
  3. Lubricate oil pump seal lip with transmission fluid.
  4. Place torque converter in position on transmission.
    CAUTION:

    Do not damage oil pump seal or converter hub while inserting torque converter into the front of the transmission.

  5. Align torque converter to oil pump seal opening.
  6. Insert torque converter (1) hub into oil pump.
  7. While pushing torque converter inward, rotate converter until converter is fully seated in the oil pump gears.
  8. Check converter seating with a scale and straightedge. Surface of converter lugs should be at least 19 mm (3/4 in.) to rear of straightedge when converter is fully seated.
  9. If necessary, temporarily secure converter with C-clamp attached to the converter housing.

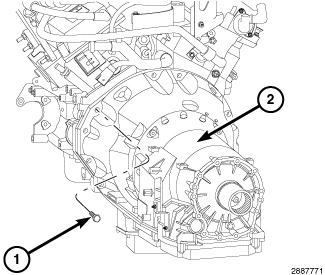

    Fig 2: Identifying Transmission & Bolts
    GC0138703Courtesy of CHRYSLER GROUP, LLC
  10. Check condition of converter driveplate. Replace the plate if cracked, distorted or damaged. Also be sure transmission dowel pins are seated in engine block and protrude far enough to hold transmission in alignment.
  11. Apply a light coating of Mopar® High Temp Grease to the torque converter hub pocket in the rear pocket of the engine's crankshaft.
  12. Raise transmission and align the torque converter with the drive plate and the transmission converter housing with the engine block.
  13. Move transmission forward. Then raise, lower, or tilt transmission to align the converter housing with the engine block dowels.
  14. Carefully work transmission (2) forward and over engine block dowels until converter hub is seated in crankshaft. Verify that no wires, or the transmission vent hose, have become trapped between the engine block and the transmission.
  15. Install two bolts (1) to attach the transmission to the engine.
  16. Install remaining torque converter housing to engine bolts. Tighten to 39 N.m (29 ft.lbs.).
    Fig 3: Identifying Lower Bolts
    GC0138699Courtesy of CHRYSLER GROUP, LLC
  17. Install rear transmission crossmember. Tighten crossmember to frame bolts to 68 N.m (50 ft.lbs.).
  18. Install rear support to transmission. Tighten bolts to 47 N.m (35 ft.lbs.).
  19. Lower transmission onto crossmember and install bolts attaching transmission mount to crossmember. Tighten clevis bracket to crossmember bolts to 47 N.m (39 ft.lbs.). Tighten the clevis bracket to rear support bolt to 68 N.m (50 ft.lbs.).
  20. Install the lower bolts (1) holding the transmission and engine. Tighten to 39 N.m (29 ft.lbs.).
  21. Remove engine support fixture.

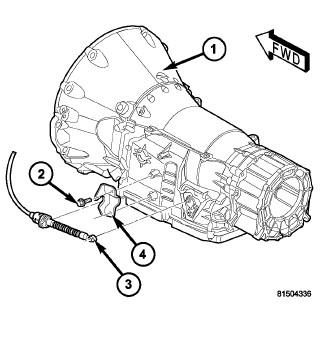

    Fig 4: Removing/Installing Shift Cable & Bracket
    GC0085485Courtesy of CHRYSLER GROUP, LLC
  22. Connect gearshift cable (3) to the gearshift cable bracket (4) and transmission (1).
    Fig 5: Removing/Installing Wiring Connector Plug
    GC0081175Courtesy of CHRYSLER GROUP, LLC
  23. Check O-ring on plug connector (1), and replace if necessary.
  24. Install the plug connector (1) into the adapter plug (2). Turn bayonet lock of the adapter plug (2) clockwise to connect plug connector (1).

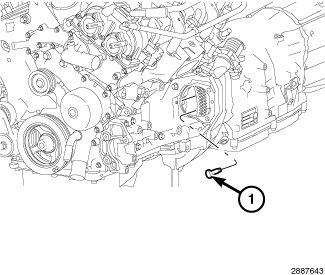

    Fig 6: Identifying Converter Bolts
    GC0138700Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    It is essential that the correct length bolts are used to attach the converter to the flexplate. Bolts that are too long will damage the clutch surface inside the torque converter.

  25. For gas engines, install all torque converter-to-driveplate bolts (1) by hand.
  26. Verify that the torque converter is pulled flush to the driveplate. Tighten bolts to 42 N.m (31 ft. lbs.).

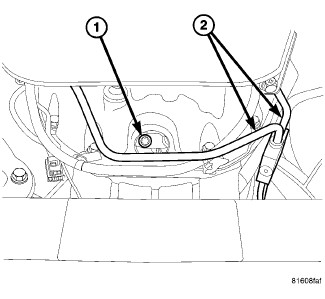

    Fig 7: Torque Converter To Flex Plate Bolts & Fluid Lines
    GC0081174Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    It is essential that the correct length bolts are used to attach the converter to the flexplate. Bolts that are too long will damage the clutch surface inside the torque converter.

  27. For diesel engines, install all torque converter-to-driveplate bolts (1) by hand.
  28. Verify that the torque converter is pulled flush to the driveplate. Tighten bolts to 42 N.m (31 ft. lbs.).

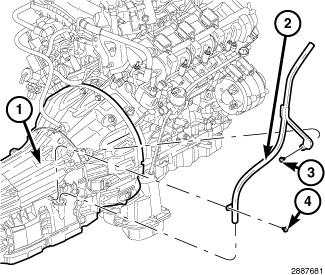

    Fig 8: Identifying Transmission, Transmission Fill Tube & Bolts
    GC0138702Courtesy of CHRYSLER GROUP, LLC
  29. Install starter motor. Refer to STARTER, INSTALLATION .
  30. Install transmission fill tube (2).

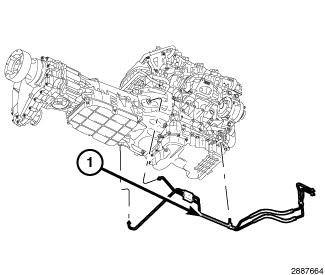

    Fig 9: Identifying Transmission Fluid Cooler Lines
    GC0138701Courtesy of CHRYSLER GROUP, LLC
  31. Connect cooler lines (1) to transmission.
  32. Install exhaust components.
  33. Install transfer case, if necessary. Refer to REMOVAL or REMOVAL or REMOVAL .
  34. Align and connect propeller shafts. Refer to SHAFT, DRIVE, FRONT, INSTALLATION or SHAFT, DRIVE, REAR, INSTALLATION .
  35. Adjust gearshift cable if necessary. Refer to CABLE, SHIFT, ADJUSTMENTS .
  36. Lower vehicle.
  37. Connect negative battery cable.
  38. Fill transmission with the appropriate fluid. Refer to FLUID AND FILTER, STANDARD PROCEDURE .
  39. Verify proper operation.
