Module, Park Assist: Installation: Installation
WARNING: This page is about a different car, the 2011 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

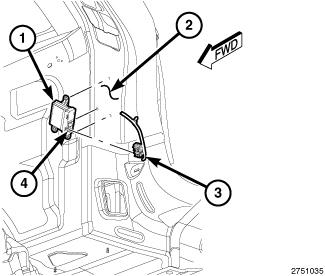

- Position the park assist module (1) to the right inner quarter panel (2) and install the fasteners.
- Connect the body wire harness connector (3) to the module connector receptacle (4). Vehicles with the front park assist option will have a second connection to the module at this location, which must also be reconnected.
- Install the right quarter interior trim panel. Refer to PANEL, QUARTER TRIM, INSTALLATION .
- Connect the negative battery cable.
