Variable Line Pressure Sensor - Installation

INSTALLATION

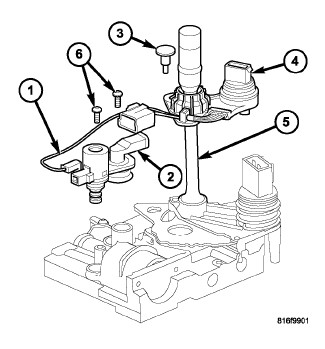

1. Install the pressure control solenoid (1)(Figure 1) and line pressure sensor (2) into the valve body.
2. Install the screws (6) to hold the pressure control solenoid (1) and line pressure sensor (2) to the valve body.
3. Install the electrical connectors to the pressure control solenoid (1) and the line pressure sensor (2).
4. Install the valve body into the transmission. Valve Body - Installation
