P2181-Cooling System Performance: Notes

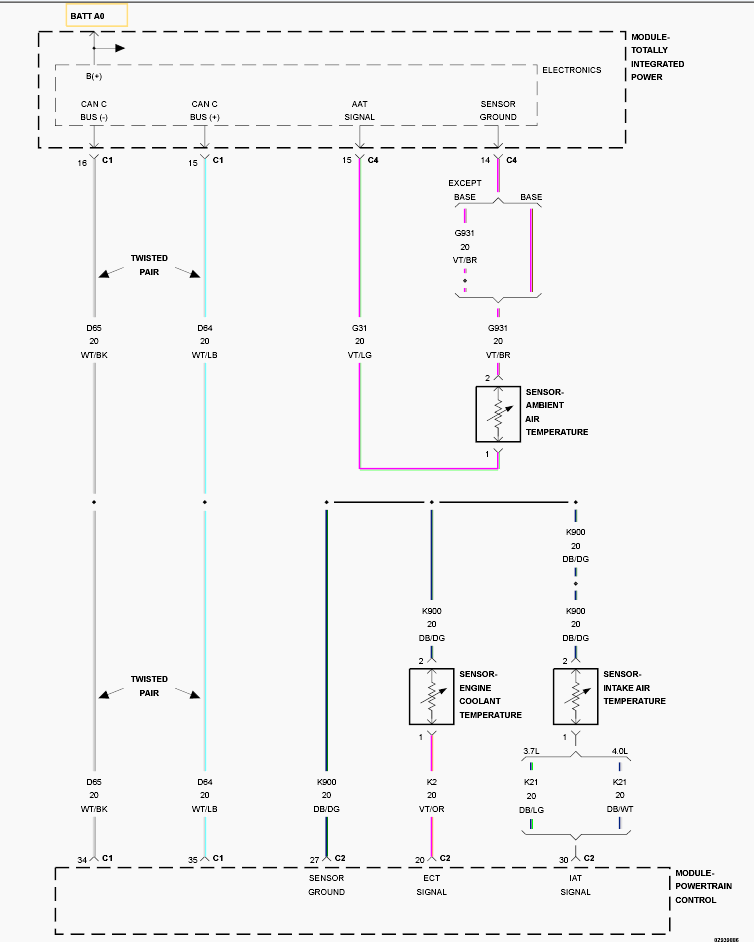

Fig 1: AAT, ECT & IAT Sensors Wiring Diagram
GC0151708Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
