MODULE, Power Inverter: Installation: Installation
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

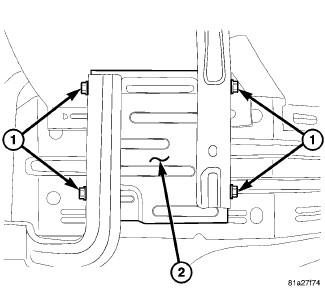

- Position the inverter module (2) on the mounting bracket assembly.
- Install the fasteners (1).
- Install the rear seat assembly. Refer to Body/Seats/SEAT - Installation .
- Connect the battery negative cable.
