Sensor, Boost Pressure: Installation: Installation

WARNING: This page is about a different car, the 2014 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Fuel Quantity Solenoid Wire Harness Connector

Courtesy of CHRYSLER GROUP, LLC

Install the boost pressure sensor (2) securely tighten bolt (3).
Connect the boost pressure sensor (2) wire harness connector (1).

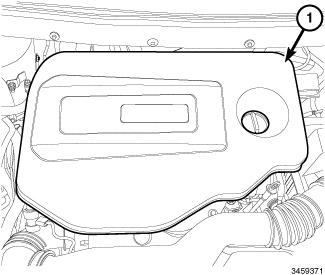

Fig 2: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
Connect the negative battery cable.
