Module, Body Control: Installation: Installation

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Body Control Module (BCM), Receptacles & Fasteners

Courtesy of CHRYSLER GROUP, LLC

Position the Body Control Module (BCM) (1) in the vehicle.
Install the two fasteners (4) at the bottom of the module and tighten securely.
Connect the electrical connectors to the BCM receptacles (2 and 3) as needed.

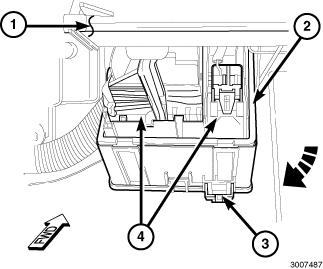

Fig 2: Clip, Fuse Box Assembly & Electrical Connectors
Courtesy of CHRYSLER GROUP, LLC
Position the fuse box (2) in the mounting bracket track.
Connect the electrical connectors (4) to the fuse box.
Raise the fuse box assembly up into place, and engage the clip (3).

Fig 3: Glove Box Assembly & Push Panel
Courtesy of CHRYSLER GROUP, LLC
Install the glove box assembly (1). Refer to GLOVE BOX, INSTRUMENT PANEL, INSTALLATION .
Install the lower hush panel (3) and install the two push-pin type retainers.
Connect the negative battery cable.

NOTE:

Program the BCM in accordance with the module replacement and programming guide. Refer to STANDARD PROCEDURE .

Perform the body verification test. Refer to BODY VERIFICATION TEST .
