Module, Telematics Gateway: Description: Description

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

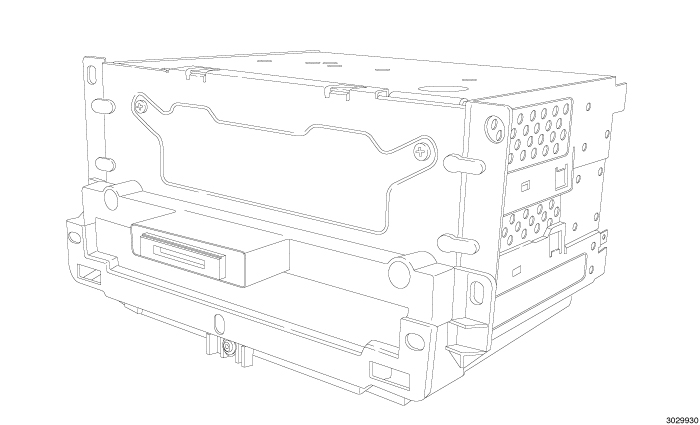

Fig 1: Mid Level Telematics Gateway Module

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Mid level Telematics Gateway Module shown in illustration, Base level similar.

The Telematics Gateway Module (TGW) is located behind the switch bank assembly in the center of the instrument panel.

If repair or replacement of the TGW is required, the radio will require a four digit code for it to function.

There are two different levels of the TGW which are:

Base - includes CD player.
Mid - includes CD/DVD player and SD card reader.
