Module, Telematics Gateway: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Bezel Assembly

Courtesy of CHRYSLER GROUP, LLC

Perform a complete backup of user data. Refer to STANDARD PROCEDURE .
Disconnect the negative battery cable.
Remove the switch-bank and bezel assembly (1). Refer to POD, SWITCH BANK, REMOVAL .

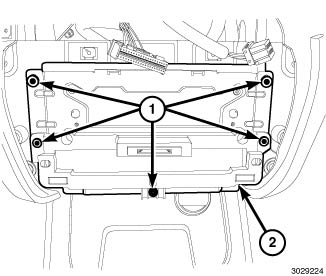

Fig 2: Retainers & Telematics Gateway Module (TGM)
Courtesy of CHRYSLER GROUP, LLC
Remove the retainers (1) from the Telematics Gateway Module (TGW) (2) and pull out far enough to access the connectors on the back of the TGW.

Fig 3: Antenna(s), Video Cable, RF HUB, Wiring Connectors And UCI Cables
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.
Disconnect the antenna(s) (1), Hands Free Module (HFM) and UCI cables (4), video cable (3) and wiring connectors (2) from the TGW.
Remove the TGW from the vehicle.
