In-Car Temperature Sensor - Installation

INSTALLATION

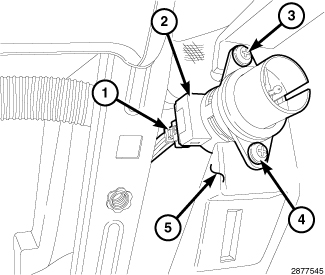

NOTE: LHD model shown. RHD model similar.





1. Position the in-car temperature sensor (2) to the instrument panel (5).
2. Install the two screws (3 and 4) that secure the in-car temperature sensor to the instrument panel. Tighten the screws securely.
3. Connect the wire harness connector (1) to the in-car temperature sensor.
4. Install the steering column opening cover Steering Column Opening Cover - Installation.
5. Reconnect the negative battery cable.
