Installation

INSTALLATION

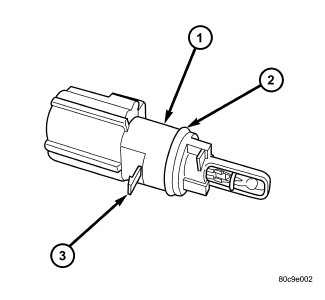

1. The sensor mounted O-ring seal (2) can be reused if not damaged.
2. Clean the IAT sensor mounting hole in the air inlet hose.
3. Install the IAT sensor into the air inlet hose and rotate clockwise until the release tab (3) engages.

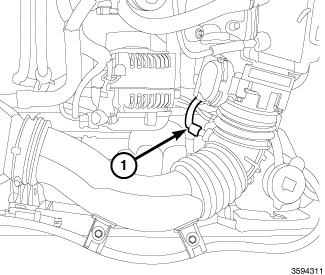

4. Install the electrical connector (1) to the IAT sensor.





5. Install the engine cover (1).
6. Connect the negative battery cable and tighten nut to 5 Nm (45 in. lbs.).
