Clutch Switch: Testing and Inspection

CLUTCH PEDAL POSITION SWITCH

START INTERLOCK TEST - DIESEL AND GAS

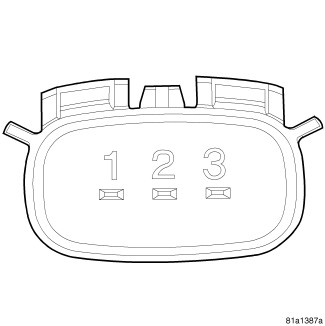

Ohm meter set on continuity: One lead on switch START INTERLOCK post 2 and second lead on COMMON post 3.

- Pedal Released - No Continuity
- Pedal Depressed End Of Stroke - Continuity

CRUISE TEST - DIESEL ONLY





Ohm meter set on continuity: One lead on switch CRUISE post 1 and second lead on COMMON post 3.

- Pedal Released - Continuity
- Pedal Depressed Beginning Of Stroke - No Continuity
