Section 139 (Rear Axle): Installation: Installation

WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

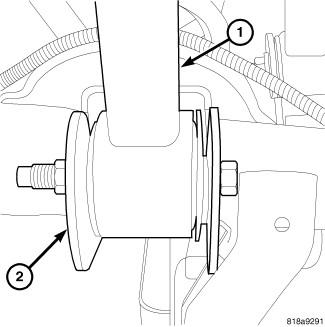

Fig 1: Lower Control Arm & Axle Bracket
GC0085811Courtesy of CHRYSLER GROUP, LLC
CAUTION:

The weight of the vehicle must be supported by the springs before the control arms and track bar are tightened. Failure to follow these instructions will cause premature bushing failure.

  1. Raise the axle under the vehicle.
  2. Install lower control arms (1) onto the axle brackets (2). Loosely install mounting bolts and nuts.
  3. Install coil spring isolators and springs.
  4. Raise axle up until springs are seated.

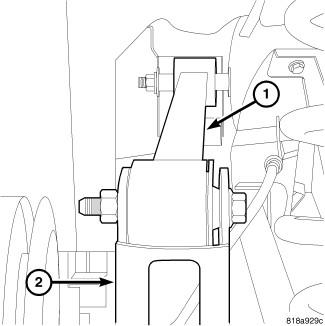

    Fig 2: Upper Control Arm & Axle Bracket
    GC0085810Courtesy of CHRYSLER GROUP, LLC
  5. Install upper control arms (1) into axle brackets (2). Loosely install mounting bolts and nuts.
    Fig 3: Shock Absorber & Axle Bracket
    GC0085809Courtesy of CHRYSLER GROUP, LLC
  6. Install shock absorbers (1) in axle brackets (2). Install shock bolts and nuts and tighten nuts to specifications.

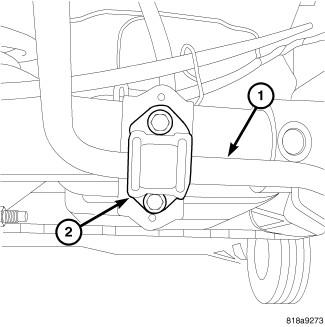

    Fig 4: Stabilizer Bar & Axle Bracket
    GC0085808Courtesy of CHRYSLER GROUP, LLC
  7. Install stabilizer bar (1) and clamps (2) on axle. Tighten clamp (2) bolts to torque specifications.
  8. Install vent hose to axle shaft tube.

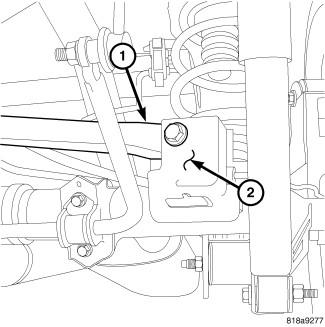

    Fig 5: Track Bar & Axle Bracket
    GC0085807Courtesy of CHRYSLER GROUP, LLC
  9. Install track bar (1) in axle bracket (2). Loosely install track bar (1) bolt.

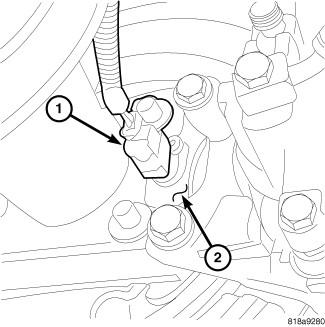

    Fig 6: Brake Sensor & Axle
    GC0085806Courtesy of CHRYSLER GROUP, LLC
  10. Install brake rotors, calipers and brake sensor (1) on axle (2).
  11. Install parking brake cables. Refer to CABLE, PARKING BRAKE, INSTALLATION .

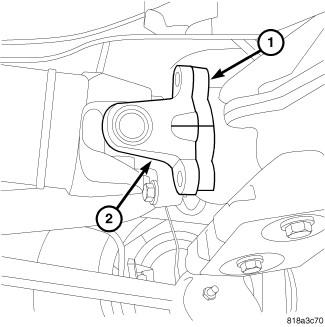

    Fig 7: Aligning Axle Flange & Propeller Shaft Flange Reference Marks
    GC0085727Courtesy of CHRYSLER GROUP, LLC
  12. Install propeller shaft with pinion flange (1) and propeller shaft flange (2) reference marks aligned.
    NOTE:

    Clean all propeller shaft bolts and apply Mopar Lock AND Seal Adhesive or equivalent to the threads before installation.

  13. Install propeller shaft bolts and tighten to specifications.
  14. Install the wheels and tires.
  15. Remove lifting device from axle and lower the vehicle.
  16. Tighten lower control arms, upper control arms and track bar bolts to torque specifications.
