Damper, Vibration: Installation: Installation
WARNING: This page is about a different variant/trim than selected.

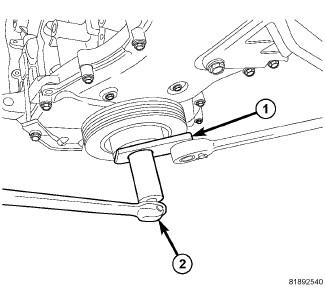

- Install crankshaft damper.
- Apply clean engine oil crankshaft damper bolt threads and between bolt head and washer. Tighten bolt to 210 N.m (155 ft. lbs.).
- Install accessory drive belts. Refer to BELT, SERPENTINE, INSTALLATION .
