Section 5 (Rear Driveline Module): Installation: Installation

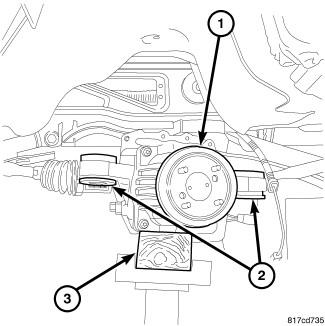

Fig 1: Rear Axle Remove And Install

Courtesy of CHRYSLER GROUP, LLC

1. Install the ECC to the RDA.
2. Install the ECC bolts and tighten to 68 N.m (50 ft. lbs.).
3. Lift driveline module (1) with a transmission jack (3) while installing both axles.

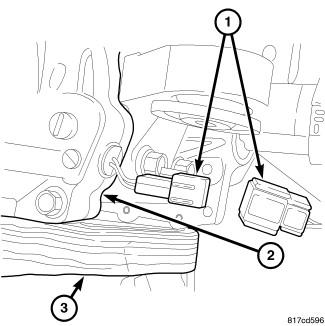

   Fig 2: Electrical Connector

   Courtesy of CHRYSLER GROUP, LLC
4. Connect breather hose to ECC.
5. Connect the electrical connector (1).
6. Install wire harness bracket and two mounting bolt and tighten to 10 N.m (89 in. lbs.).
   Fig 3: Rear Axle Remove And Install

   Courtesy of CHRYSLER GROUP, LLC
7. Lift driveline module (1) into place.

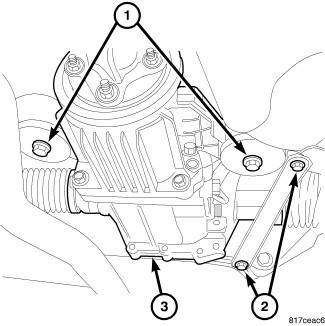

   Fig 4: Driveline Module Mounting Bolts

   Courtesy of CHRYSLER GROUP, LLC
8. Install the two driveline module side mounting bolts (1) and tighten to 102 N.m (75 ft. lbs.).
   Fig 5: Rear Bolt At Axle

   Courtesy of CHRYSLER GROUP, LLC
9. Install the one rear driveline module mounting bolt (1) and tighten to 102 N.m (75 ft. lbs.).

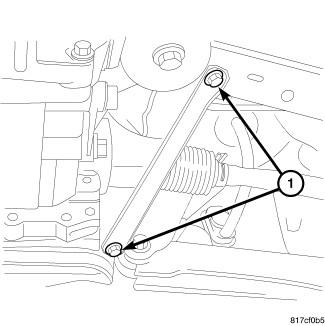

   Fig 6: Right Stay Bar

   Courtesy of CHRYSLER GROUP, LLC
10. Install right side stay bracket and tighten bolts (1) to 61 N.m (45 ft. lbs.).

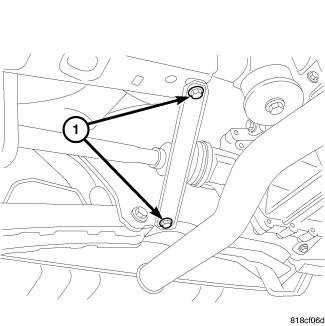

    Fig 7: Left Side Stay Bar

    Courtesy of CHRYSLER GROUP, LLC
11. Install left side stay bracket and tighten bolts (1) to 61 N.m (45 ft. lbs.).
12. Install the propeller shaft Refer to INSTALLATION .
13. Fill the rear axle with fluid.

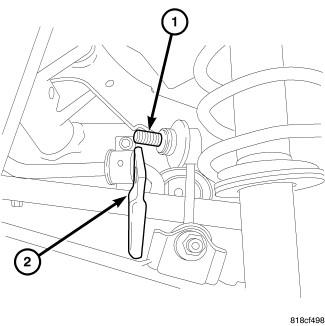

    Fig 8: Sway Bar

    Courtesy of CHRYSLER GROUP, LLC
14. Roll sway bar (2) into place (if equipped).

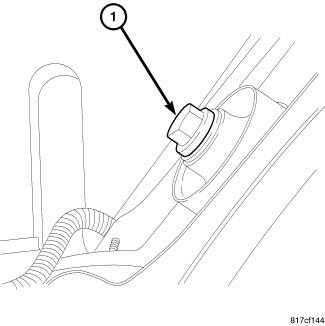

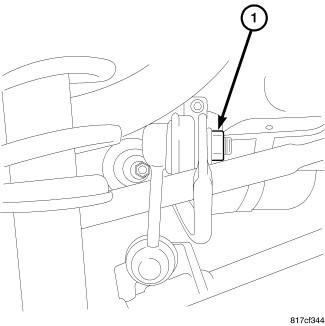

    Fig 9: Left Side Sway Bar Nut

    Courtesy of CHRYSLER GROUP, LLC
15. Install left side sway bar nut (1) (if equipped) and tighten to (61 N.m (45 ft. lbs).

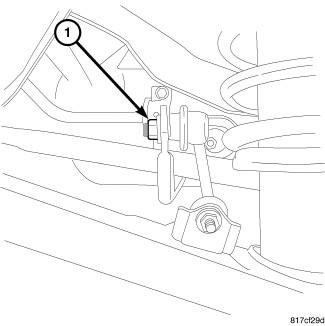

    Fig 10: Right Sway Bar Nut

    Courtesy of CHRYSLER GROUP, LLC
16. Install right side sway bar nut (1) (if equipped) and tighten to 61 N.m (45 ft. lbs).
17. Install the exhaust Refer to MUFFLER, EXHAUST, INSTALLATION .
18. Install the wheels Refer to INSTALLATION .
