Wheel Alignment



WHEEL ALIGNMENT

NOTE: Specifications are in degrees.

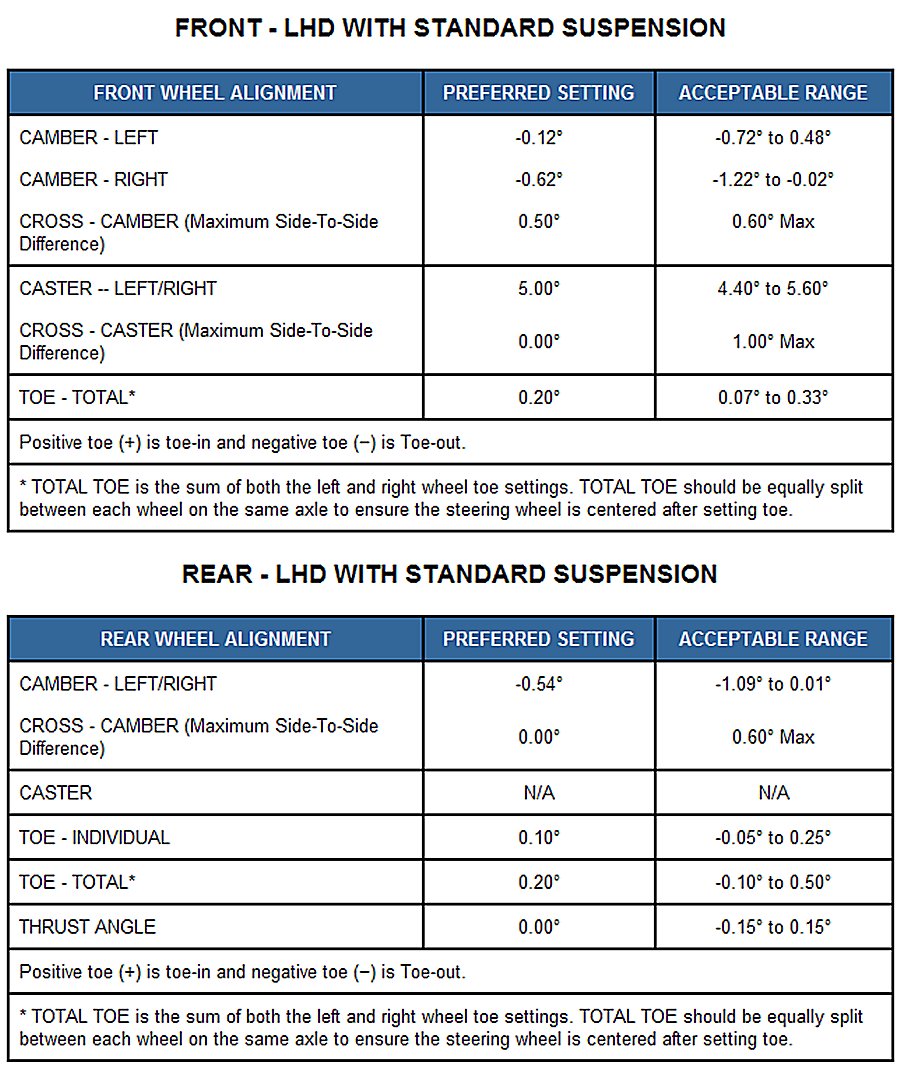

LHD WITH STANDARD SUSPENSION

Standard:






LHD WITH SPORT SUSPENSION

Sport:

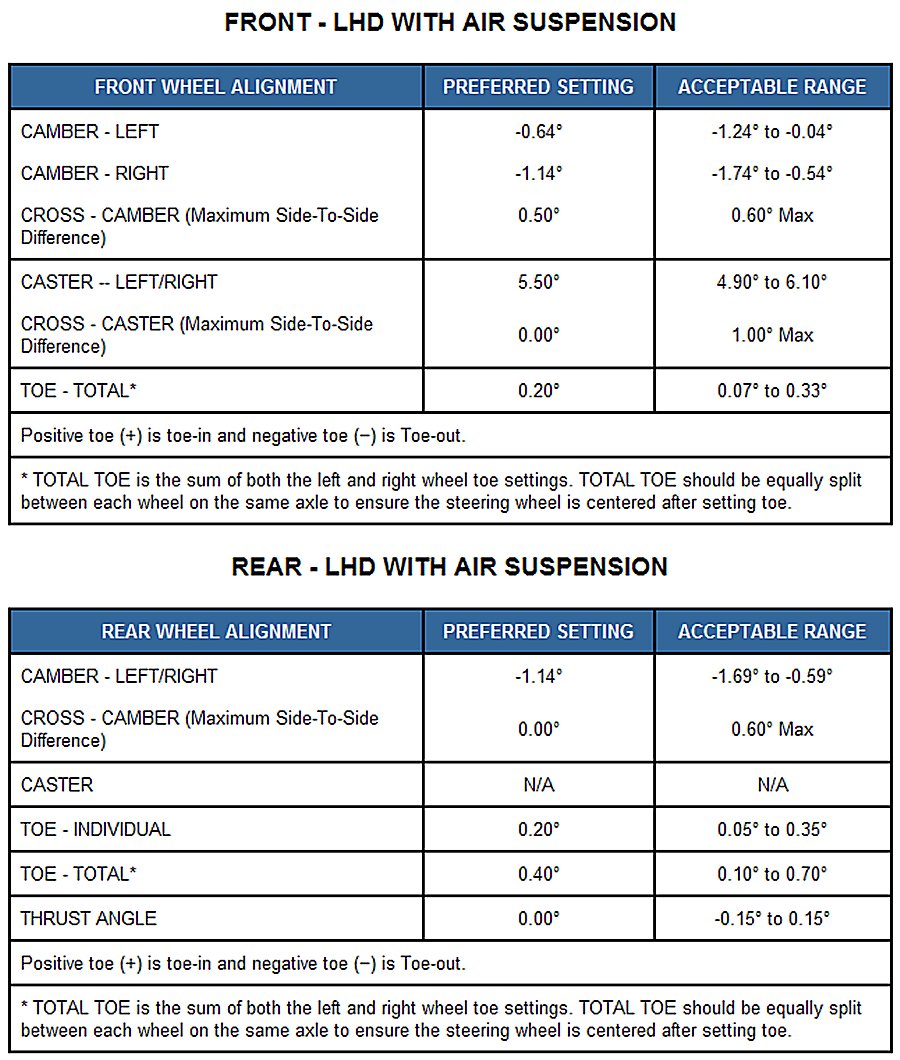

LHD WITH AIR SUSPENSION

Air Suspension:






NOTE: Vehicles equipped with Air Suspension must be in the manually selected "Sport" position (Aero mode) of the terrain select switch when checking vehicle ride height or alignment.
