Module, Blind Spot: Removal: Removal
WARNING: This page is about a different car, the 2012 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Position the left front seat to its full forward position.
- Disconnect and isolate the negative battery cable. For battery location and disconnect procedure. Refer to CABLES, BATTERY, REMOVAL .

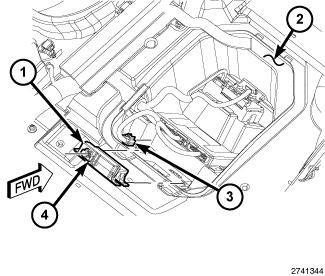

- Remove the cover panel from the electronic module tub (2) to access the blind spot module (1).
- Disconnect the body wire harness connector (3) from the module connector receptacle (4).
- Release integral latches that secures the module to the mounting bracket and slide the module upward.
- Remove the module from the vehicle.
