Fan, Cooling: Removal: Gas

  1. Disconnect the negative battery cable.
  2. Remove the engine cover.
  3. Raise the vehicle.
    Fig 1: Removing/Installing Belly Pans
    GC0159327Courtesy of CHRYSLER GROUP, LLC
  4. Remove the lower belly pan (1).
  5. Partially drain the cooling system.
    Fig 2: Push Pins, Side Close Out Deflector & Lower Deflector
    GC0159495Courtesy of CHRYSLER GROUP, LLC
  6. Remove the push pins (1) that secure the side close out deflector from the lower deflector (2).
  7. Lower the vehicle.
    Fig 3: Upper Close Out Panel Cover Components
    GC0160073Courtesy of CHRYSLER GROUP, LLC
  8. Remove the upper close out panel cover (1).
    Fig 4: Side Air Deflectors & Upper Radiator Closeout Panel
    GC0160015Courtesy of CHRYSLER GROUP, LLC
  9. Separate the side air deflectors from the upper radiator closeout panel.
    Fig 5: Removing/Installing Upper Air Deflector
    GC0159459Courtesy of CHRYSLER GROUP, LLC
  10. Disconnect the cooling fan module harness connector (4).
  11. Disconnect the ambient air temperature sensor (5).
  12. Disconnect the horn electrical connectors (6).
  13. Remove the hood release cable (3) from the air deflector.
  14. Remove the wiring harness (7) from the air deflector.
  15. Remove the upper air deflector (1).
    Fig 6: Removing/Installing A/C Fill Port Support Bracket
    GC0159561Courtesy of CHRYSLER GROUP, LLC
  16. Remove the A/C fill port support bracket (2) and position aside.
    Fig 7: Removing/Installing Transmission Cooler Line Support Bracket Bolt
    GC0159379Courtesy of CHRYSLER GROUP, LLC
  17. Separate the transmission cooler line support brace bolt (1).

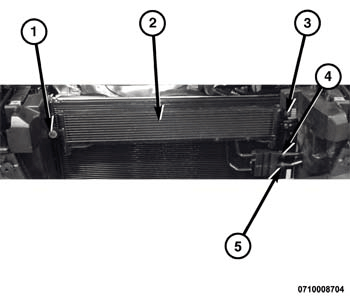

    Fig 8: Transmission Oil Cooler
    GC0159856Courtesy of CHRYSLER GROUP, LLC
  18. Separate the transmission cooler (2) from the condenser and position aside.
    Fig 9: Removing/Installing Upper Radiator Mounts
    GC0159343Courtesy of CHRYSLER GROUP, LLC
  19. Separate the upper radiator hose from the radiator.
  20. Remove the upper radiator mounts (1).
    Fig 10: Removing/Installing Fan Assembly
    GC0159755Courtesy of CHRYSLER GROUP, LLC
  21. Remove the cooling fan module wiring harness from the module (2).
  22. Remove the bolts (1) that secure the cooling fan assembly to the radiator.
  23. Using care, lift the fan slightly upward.
  24. Tilt the cooling fan down to allow for the upper mounting tab to clear the upper radiator hose.
  25. Remove the fan assembly from the vehicle.
