Frame, Ladder: Removal: Removal

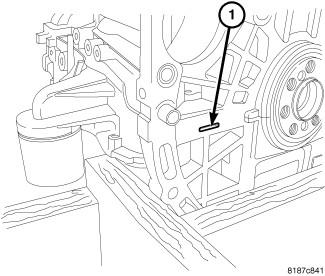

Fig 1: Pry Point 1
GC0084997Courtesy of CHRYSLER GROUP, LLC
  1. Remove oil pan. Refer to PAN, OIL, REMOVAL .
  2. Remove balance shaft assembly. Refer to PUMP, ENGINE OIL, REMOVAL .
  3. Remove ladder frame retaining bolts.
  4. Remove ladder frame using pry point cast in the rear of the block (1).

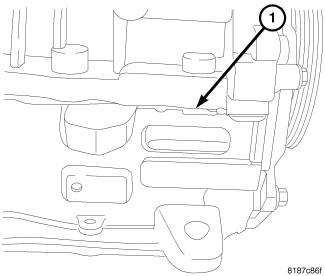

    Fig 2: Pry Point 2
    GC0084998Courtesy of CHRYSLER GROUP, LLC
  5. To assist in removing the ladder frame another (1) pry point cast in the right side of the block.
