Front Toe

CAUTION:

Do not twist the inner tie rod-to-steering gear rubber boots while turning the inner tie rods during the front toe adjustment.

NOTE:

Perform the following at each front wheel as necessary.

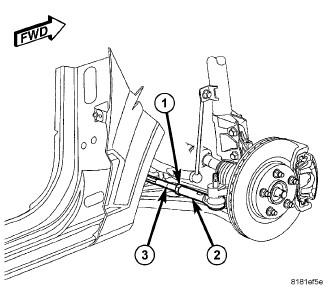

Fig 1: Tie Rod Jam Nut

Courtesy of CHRYSLER GROUP, LLC

Loosen the tie rod adjusting jam nut (1). Grasp the inner tie rod (3) and rotate it one way or the other until the front wheel toe is set to the preferred specification. Refer to WHEEL ALIGNMENT, SPECIFICATIONS .
Tighten the tie rod adjusting jam nut to of 75 N.m (55 ft. lbs.).
Make sure the inner tie rod-to-steering gear rubber boot is not twisted.
