CROSSMEMBER, Front Fore And Aft: Installation: Installation

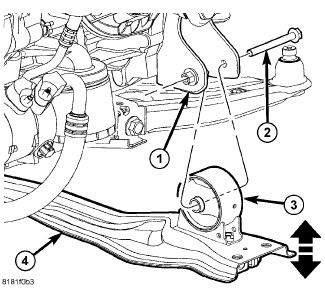

Fig 1: Fore/Aft Crossmember 2

Courtesy of CHRYSLER GROUP, LLC

1. Install the fore/aft crossmember and install the engine anti-roll mount (3) through bolt (2).

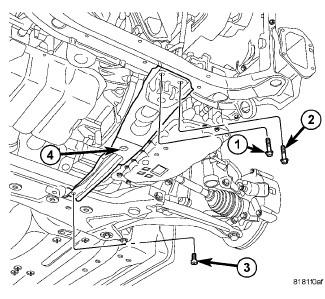

   Fig 2: Fore/Aft Crossmember 1

   Courtesy of CHRYSLER GROUP, LLC
2. Install the bolts (1, 2 and 3), and tighten using the following sequence:
   1. Tighten the bolt (1) to 78 N.m (58 ft. lbs.).
   2. Tighten the bolt (2) to 78 N.m (58 ft. lbs.).
   3. Tighten the bolt (3) to 129 N.m (95 ft. lbs.).
   Fig 3: Fore/Aft Crossmember 2

   Courtesy of CHRYSLER GROUP, LLC
3. Tighten the bolt (2) to 65 N.m (48 ft. lbs.).

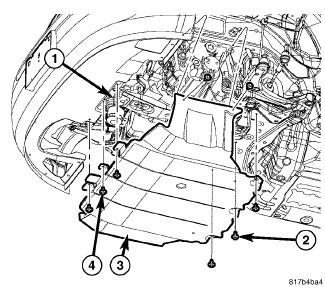

   Fig 4: Belly Pan

   Courtesy of CHRYSLER GROUP, LLC
4. If equipped, install the belly pan.
5. Install the three front screws (4), the three rear screws (2) and on push pin fastener into the center of the belly pan.
