Frame Dimensions
Frame dimensions are listed in metric scale. All dimensions are from center to center of Principal Locating Point (PLP), or from center to center of PLP and fastener location.
VEHICLE PREPARATION-
Position the vehicle on a level work surface. Using screw or bottle jacks, adjust the vehicle PLP heights to the specified dimension above a level work surface. Vertical dimensions can be taken from the work surface to the locations indicated were applicable.
INDEX
| DESCRIPTION | FIGURE |
|---|---|
| COMPASS AND PATRIOT | |

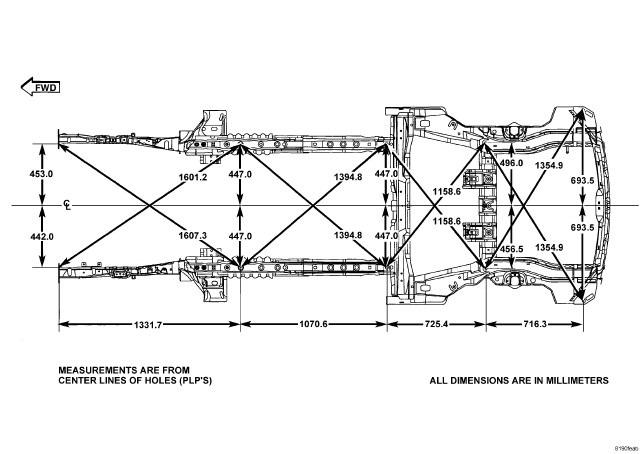

| FRAME DIMENSIONS - PLAN VIEW | Refer to Fig 1. |

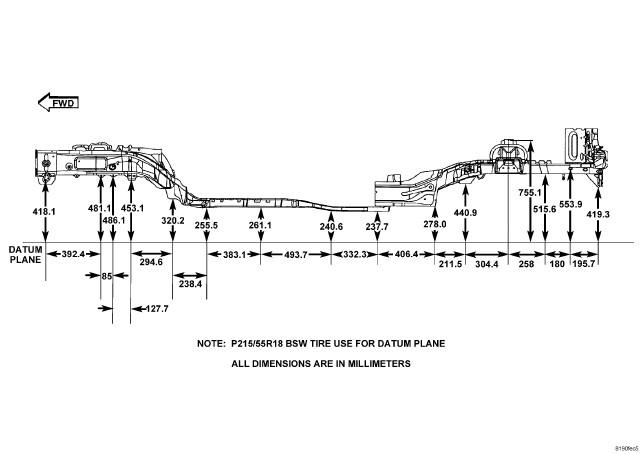

| FRAME DIMENSIONS - SIDE VIEW | Refer to Fig 2. |
COMPASS AND PATRIOT
