Starting System (Service Information): Starter: Installation: Diesel

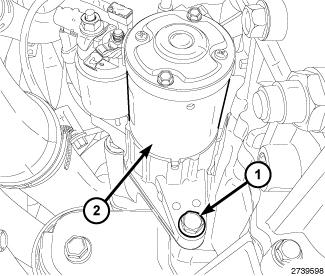

Fig 1: Identifying Lower Starter Mounting Bolt & Starter

Courtesy of CHRYSLER GROUP, LLC

1. Install the lower starter mounting bolt (1) and remove the starter (2).

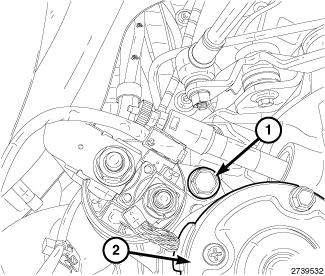

   Fig 2: Identifying Upper Starter Mounting Bolt

   Courtesy of CHRYSLER GROUP, LLC
2. Install the upper starter mounting bolt.

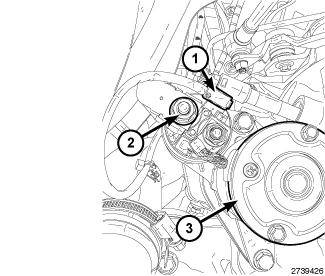

   Fig 3: Identifying Electrical Connector, B+ Cable & Starter

   Courtesy of CHRYSLER GROUP, LLC
3. Connect the electrical connector (1) and the B+ cable (2) from the starter (3).
   Fig 4: Identifying Bolts & Belly Pan

   Courtesy of CHRYSLER GROUP, LLC
4. If equipped, install the belly pan (2).
5. Connect the negative battery cable.
