MODULE, Powertrain Control: Installation: Installation

WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

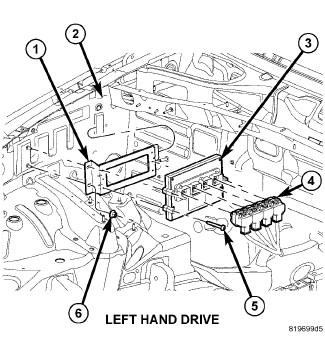

Fig 1: PCM LOCATION - LEFT HAND DRIVE

Courtesy of CHRYSLER LLC

NOTE: Right hand drive PCM is in a different location (shown in illustration).

The PCM (Powertrain Control Module) (3-Left Hand Drive), or (3-Right Hand Drive) is located in the engine compartment.
Position PCM (3-Left Hand Drive), or (3-Right Hand Drive) to vehicle.
Install PCM mounting screws (5-Left Hand Drive), or (4-Right Hand Drive). Tighten screws to 8 N.m (71 in. lbs.) torque.
Connect PCM electrical connectors (4-Left Hand Drive), or (5-Right Hand Drive).
Connect negative battery cable.
CAUTION: Refer to PCM/ECM REPROGRAMMING for reprogramming procedures. If this step is not performed, a Diagnostic Trouble Code (DTC) will be set.

CAUTION: Use the scan tool to reprogram the new PCM with the vehicles original identification number (VIN) and the vehicles original mileage. If this step is not performed, a Diagnostic Trouble Code (DTC) will be set.

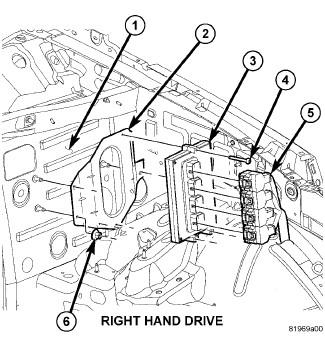

Fig 2: PCM LOCATION - RIGHT HAND DRIVE
Courtesy of CHRYSLER LLC

Right hand drive location:
