Engine Block: FLEXPLATE: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

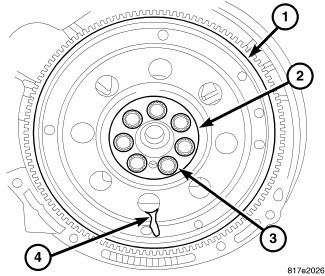

Fig 1: Flex Plate
GC0098637Courtesy of CHRYSLER GROUP, LLC
  1. Install flex plate (1).
  2. Install washer (2).
  3. Install new  flex plate bolts (3) and tighten in a criss-cross pattern to 29 N.m (22 ft. lbs.) plus 51° rotation.
  4. Install transaxle. Refer to T355, INSTALLATION or CVT, INSTALLATION .
